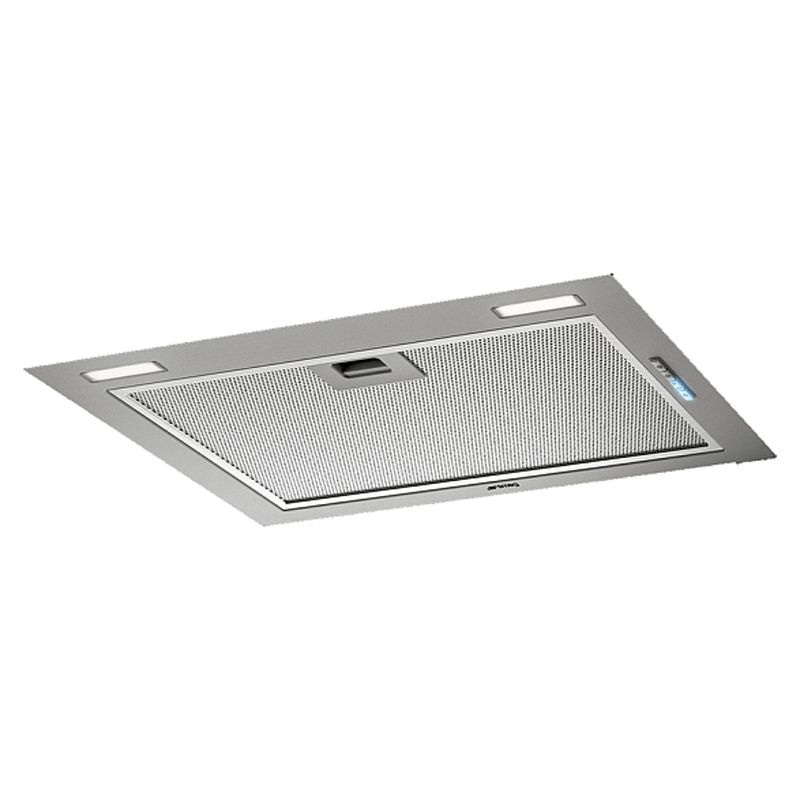

Smeg Integrated Hood 52 cm Stianless Steel

The Smeg KSG52HPE built-in hood measures 52 cm. and is equipped with an efficient and silent motor with a maximum suction capacity of 580 m3/h and 175 W of power. With aluminum filter, 2 LED lights, 3 speeds.

Typology

Family: Cappa

Type: Group integrated

Hood width: 52 cm.

Filtering: Expulsion

Electronic control: Yes

EAN code: 8017709333614

Aesthetics

Color: Stainless Steel

Finish: Satin

Aesthetics: Universal

Design: Retractable

Material: Painted Material

Stainless steel type: Satin

Programs / Functions

No. of speeds: 3

Commands

Control adjustment: Keys

LED color: White

Technical features

No. of lights: 2

Light Type: LED

Light power: 5W

Light Color Temperature (°K): 2700°K

Maximum suction capacity in free mode (P0): 580 m³/h

Motor power: 175W

No. of filters: 1

Grease filters: Aluminium

Carbon filters: Yes

Filter change indicator: Yes

Minimum installation distance from gas hob: 650 mm

Minimum installation distance from electric hob: 500 mm

Motor inlet diameter: 150 mm

Performance / Energy Label

Energy efficiency class (EEC): B

Fluid Dynamic Efficiency Class (FDEC): C

Grease filtering efficiency class (GFEC): C

Lighting efficiency class (LEC): A

Annual consumption efficiency (AEC): 75 kWh/a

Dynamic fluid efficiency (FDE): 20.9

Lighting efficiency (LE): 44.1 lux/W

Grease filtering efficiency (GFE): 75.1 %

Air flow at minimum speed (Qmin): 225 m³/h

Air flow at maximum speed (Qmax): 580 m³/h

Weighted sound power emission at minimum speed (SPEmin): 46 dB(A)

Weighted acoustic power emission at maximum speed (SPEmax): 65 dB(A)

Stand-by power consumption (Ps): 0.49 W

Time increase factor (F): 1.2

Energy efficiency index: 69.6

Air flow rate measured in the maximum efficiency condition (Qbep): 345 m³/h

Air pressure measured in the maximum efficiency condition (Pbep): 355 Pa

Electrical power absorbed in the maximum efficiency condition (Wbep): 163 W

Rated power of the lighting system (WL): 5 W

Average illumination of the lighting system on the hob (Emiddle): 221 lux

Sound level in the highest configuration (Lwa): 65 dB(A)

Electrical connection

Nominal electrical connection data: 285 W

Voltage: 220-240V

Frequency: 50-60Hz

Power cable length: 1000 mm

Speed 1

Suction capacity (IEC 61591): 232 m³/h

Noise level (IEC 60704-2-13): 44 dB(A)

Power: 106W

Speed 2

Suction capacity (IEC 61591): 356 m³/h

Noise level (IEC 60704-2-13): 53 dB(A)

Power: 132W

Speed 3

Suction capacity (IEC 61591): 584 m³/h

Noise level (IEC 60704-2-13): 63 dB(A)

Power: 192W

Logistics information

Product dimensions (mm): 251x514x283

Width: 514mm

Product Depth (mm): 283mm

Product Height (mm): 251 mm

Net weight (kg): 5,800 kg

Gross weight (kg): 7,400 kg

Width of packaged product: 334 mm

Depth of packaged product: 323 mm

Height of packaged product: 572 mm

Dimensions of the packaged product (mm): 572X334X323

Optional accessories (can be purchased in the appropriate section)

- KITFC221R Regenerable high efficiency carbon filter
